Physical Security Design for Unattended Radar Tower Sites: Anti-Climb, Anti-Tamper, and Surveillance Integration

Quick Answer

Physical security for unattended radar tower sites requires a layered, integrated approach that combines three defensive systems: anti-climb measures (ladder removal, anti-climb guards, perimeter fencing), anti-tamper hardware (coded locking systems, passive electronic locks, tamper-detection sensors), and remote surveillance integration (radar perimeter detection, PTZ cameras, and centralized monitoring). Because radar sites are often located in remote, sparsely populated areas—where physical guarding is impractical—the security strategy must be self-monitoring and self-reporting, capable of detecting, verifying, and alerting on intrusion attempts without on-site personnel. This guide outlines the engineering and design principles for each layer, with practical specifications drawn from international standards and real-world deployments.

Key Takeaways

1. · Anti-climb begins with access denial: Regulations explicitly require that towers be “constructed or shielded in such a manner that they cannot be climbed,” including removal of climbing steps for the first 10 feet (3 meters) of a monopole.

2. · Perimeter fencing is the outermost barrier: Standards require minimum 8-foot (2.4m) fencing for tower sites, with gates secured by high-security locks and, for remote sites, electronic fencing systems with a minimum height of 300mm above the wall.

3. · Anti-tamper hardware prevents component theft and manipulation: Patented coded locking inserts convert standard hex bolts into security fasteners, while passive electronic locks provide keyless access control with tamper detection—critical for equipment cabinets and access panels.

4. · Radar-based perimeter detection is ideal for remote sites: Modern ground surveillance radar can detect movement up to 5 km radius, integrate seamlessly with video management systems (VMS), and operate in all weather conditions.

5. · Centralized monitoring enables unattended operation: Remote status monitoring, alarm verification, and access logging allow a single operations center to oversee multiple radar sites simultaneously, as demonstrated by China Tower's “digital tower” transformation and by manufacturers like Qingdao Altai Tower that integrate security provisions into tower design from the outset.

1. User Search Intent Analysis

Who is searching for this information?

Search intent summary: Users need actionable technical specifications for securing unattended radar sites—not general security principles. They want to know what anti-climb devices are required by standard, what locking systems are appropriate for remote sites, and how to integrate surveillance sensors into a coherent, remotely monitored security architecture.

2. Key Questions Users May Have

1. 1. What are the mandatory anti-climb requirements for radar towers? What height must anti-climb guards be installed at?

2. 2. How do I prevent unauthorized access to tower-mounted equipment? What locking systems work for remote, unattended sites?

3. 3. What is the best perimeter detection technology for remote radar sites? Radar, electronic fencing, or laser?

4. 4. How can I monitor multiple unattended sites from a single location? What are the data transmission and integration requirements?

5. 5. What standards and regulations apply? TIA-222, GB 51418, CNI fencing standards?

6. 6. How do I balance security with maintenance access? What access control systems allow authorized personnel but deter intruders?

7. 7. What are the power requirements for remote security systems? Solar, battery, or grid—what works best?

8. 8. How do I verify an alarm is a real threat and not a false positive? What sensor fusion strategies are available?

9. 9. What is the typical cost of a complete physical security system for an unattended radar tower?

10. 10. Can security systems be integrated with the radar tower manufacturer's structural design?


3. Article Framework

Section 1: The Security Challenge for Unattended Radar Sites

Why radar sites are uniquely vulnerable and why physical security must be designed into the structure itself.

Section 2: Layer 1 — Anti-Climb Design

Ladder removal, anti-climb guards, perimeter fencing, and regulatory requirements.

Section 3: Layer 2 — Anti-Tamper Hardware

Coded locking systems, passive electronic locks, equipment cabinet security, and tamper detection.

Section 4: Layer 3 — Remote Surveillance Integration

Radar perimeter detection, PTZ cameras, sensor fusion, and centralized monitoring architecture.

Section 5: Design Integration with Tower Structure

How security provisions are incorporated into radar tower design—structural mounting points, cable routing, power provisioning.

Section 6: Case Studies

Real-world deployments: China Tower’s “Digital Tower” transformation and Qingdao Altai Tower’s security-integrated radar tower design.

Section 7: FAQ

Answers to the most common questions about unattended radar site security.

4. Core Content

4.1 The Security Challenge for Unattended Radar Sites

Radar towers present a distinctive security problem. They are critical infrastructure—essential for air traffic control, weather monitoring, border surveillance, and defense—yet they are often located in remote, sparsely populated areas where physical guarding is neither practical nor cost-effective. A radar site may be unattended for weeks or months, visited only for scheduled maintenance.

This creates a security gap: the asset is highly valuable, the location is isolated, and the response time to an intrusion attempt is measured in hours, not minutes. The physical security design must therefore be self-sufficient, capable of deterring opportunistic intruders, detecting determined adversaries, and alerting remote operators without relying on on-site personnel.

The design philosophy is defense in depth, with three distinct layers:

1. Anti-climb: Preventing access to the tower structure itself

2. Anti-tamper: Protecting equipment cabinets, access panels, and critical components

3. Remote surveillance: Detecting and verifying intrusion attempts, and integrating with central monitoring

4.2 Layer 1 — Anti-Climb Design

The first layer of defense is preventing unauthorized personnel from reaching the tower structure or gaining access to elevated equipment.

4.2.1 Regulatory Requirements

Multiple standards and regulations explicitly address anti-climb requirements for telecommunications and radar tower sites:

1. · Tower inaccessibility mandate: “All facilities, including antennas, towers and other supporting structures, such as guy anchor points and guy wires, shall be made inaccessible to unauthorized individuals and shall be constructed or shielded in such a manner that they cannot be climbed or collided with and shall expressly include removing the climbing steps for the first ten feet from the ground on a monopole”.
2. · Anti-climb guard placement: For lattice towers, anti-climb guards shall be positioned between 2.8m and 3.5m from ground level at each tower position. For towers with base dimensions less than 6.0m, an all-perimeter type anti-climb guard is required; for larger bases, additional corner-type guards are specified.
3. · Perimeter fencing: Tower sites shall be enclosed by security fencing of at least 8 feet (2.4m) in height. For sites where additional deterrence is required, fencing may extend from ground level to a minimum height of 7 feet with an extension of not less than 12 inches of barbed wire (three or more strands) or razor wire.
4. · Electronic fencing for remote sites: For radar stations located far from towns and populated areas, electronic fencing should be installed above the perimeter wall, with a height of not less than 300mm, accompanied by warning signs. The perimeter should be divided into defense zones and linked with security cameras.

4.2.2 Anti-Climb Device Types

4.2.3 Perimeter Fencing Considerations

For remote radar sites, the perimeter fence is the primary physical barrier. Key design considerations:

1. · Height: Minimum 8 feet for tower sites; for electronic fencing over walls, additional 300mm minimum

2. · Material: Galvanized steel chain-link, woven mesh, or palisade fencing; for critical national infrastructure, security-rated fencing certified to LPS 1175 is recommended

3. · Gates: Self-latching, lockable gates at all access points; separate locks for general site access and contractor access

4. · Clear zone: Maintain a radial distance of at least 6 feet between the fence and any tower structure

5. · Vegetation control: Tower base and foundation area must be clear of debris and vegetation overgrowth that could facilitate climbing or concealment

4.3 Layer 2 — Anti-Tamper Hardware

The second layer protects the equipment and access points that an intruder would target after breaching the perimeter.

4.3.1 Locking Systems for Remote Sites

Traditional mechanical locks are insufficient for unattended sites. The industry is moving toward intelligent, battery-free electronic locks and coded locking inserts that provide both physical security and audit trails.

1. · Coded locking inserts (Hexlox system): “A patented coded locking insert system that fits directly into existing hex bolts to secure components of telecommunications infrastructure... converts any standard hex bolt into a coded security fastener”. This is particularly valuable for securing tower-mounted equipment—radios, RRUs, antenna mounts—that would otherwise be vulnerable to quick removal with standard tools.
2. · Passive electronic locks: “Passive electronic locks offer a smart, energy-efficient, and robust solution, especially suited for telecom towers, outdoor cabinets, and fiber distribution boxes... Anti-tamper and anti-theft design... Tamper Detection... Passive locks offer protection from moisture, dust, and tampering”. These locks are powered by the key itself—no batteries, no cabling—making them ideal for remote sites without grid power.
3. · Intelligent access control for unattended sites: “Electronic password lock, fingerprint lock or remote intelligent lock for unattended sites... Mechanical locks must use anti-pry, anti-saw heavy-duty locks; unattended remote towers recommend intelligent electronic locks with access record function”.

4.3.2 Equipment Cabinet and Shelter Security

The equipment shelter or cabinet houses the radar electronics, power systems, and communications equipment—the highest-value targets for theft or sabotage.

Design requirements:

1. · Door security: Equipment shelter doors secured with functioning deadbolt or high-security locks; no signs of forced entry attempts

2. · Window protection: Iron bars over windows, HVAC vents, and louvers—while ensuring compliance with fire codes for emergency exits

3. · Cabinet locking: All outdoor equipment cabinets locked and showing no signs of tampering or unauthorized access

4. · Tamper detection: Sensors that “sound alarms and call/text/email in the event of tampering, break-in or a door left ajar”

4.3.3 Anti-Tamper for Tower-Mounted Equipment

Equipment mounted high on the tower—radar antennas, RRUs, networking devices—is inherently more secure simply by virtue of altitude. As one patent notes: “The radio tower itself can be a security barrier that discourages malicious entities from tampering with networking device... If one were to want to steal or tamper with tower-mounted equipment, that person would need to climb up the radio tower”.

However, determined intruders with climbing equipment can still access tower-mounted assets. Supplemental measures include:

1. · Coded bolt inserts on all equipment mounting hardware

2. · Security cables through equipment handles, anchored to structural members

3. · Alarm-triggered cameras focused on equipment mounting areas

4. · Tamper-evident seals on enclosures to indicate attempted access

4.4 Layer 3 — Remote Surveillance Integration

The third layer provides detection, verification, and alerting—the “eyes and ears” of the security system.

4.4.1 Radar Perimeter Detection

Ground surveillance radar has emerged as the optimal detection technology for remote, unattended sites because it operates effectively in all weather conditions, requires no lighting, and provides continuous, wide-area coverage.

1. · Navtech AdvanceGuard: “High-definition radar and intelligent software tracks unlimited targets on complex sites where legitimate and illegitimate activity occur 24/7/365, in all weathers... provides full situational awareness... raising alarms when real threats occur... with up to 3km detection range”.
2. · Navtech Radar security solution: “Radar sensors detect movement on the site for up to a 5km radius, and can be seamlessly integrated into existing video management systems (VMS). The system provides a “user-friendly interface to monitor all movements within and around the perimeter on a digital map”.
3. · Sensor fusion with video: The most effective architecture combines radar detection with PTZ camera verification. When radar detects movement, it cues a PTZ camera to the target location, enabling the operator to visually verify the threat before dispatching a response. This “one radar with multiple PTZ” approach allows multiple cameras to be used simultaneously within the radar’s monitored area.

4.4.2 Video Surveillance

For radar tower sites, camera placement should serve dual purposes: site security and equipment monitoring.

Camera types and placement:

On-tower equipment monitoring: “For safety reasons, a spherical camera is installed on the tower for the tower itself and the self-security monitoring of tower-mounted equipment”.

4.4.3 Centralized Monitoring Architecture

The defining characteristic of an unattended site is that monitoring happens somewhere else. The security system must transmit detection data, video, and alarms to a remote operations center.

System architecture components:

1. · Sensors: Radar, cameras, door contacts, tamper switches, motion detectors

2. · Local processing: Edge-based analytics to filter false alarms and verify threats before transmission

3. · Communications: 4G/5G, satellite, or fiber backhaul; for remote sites, satellite is often the only option

4. · Power: Solar with battery backup, or grid connection where available

5. · Central management platform: Unified interface for alarm monitoring, video review, access control, and system health status

Remote status monitoring: “Remote status monitoring of all tower equipment and applications” is a standard feature of integrated surveillance tower platforms.

Access logging and audit: “Real-time logging and reporting can help manage sites and verify access events”. For unattended sites, all access events (authorized and attempted unauthorized) should be logged with time, date, and identity where possible.

4.5 Design Integration with Tower Structure

Security is most effective—and most economical—when designed into the radar tower from the outset rather than retrofitted.

Structural provisions for security:

1. · Anti-climb guard mounting points: Welded brackets or bolt patterns on tower legs at specified heights (2.8–3.5m)

2. · Camera and radar mounting platforms: Dedicated brackets on the tower at appropriate heights for surveillance equipment

3. · Cable routing: Dedicated conduits or trays for security system power and data cables, separate from RF and power cables

4. · Power provisioning: Pre-wired 48V DC or PoE circuits for security devices, with solar and battery capacity sized for security load

5. · Equipment cabinet space: Additional rack space for security system controllers, NVRs, and communications equipment

Coordination with tower manufacturer: When specifying a radar tower, the security requirements should be included in the design brief. Manufacturers that offer integrated guard towers—such as Qingdao Altai Tower—can incorporate anti-climb provisions, locking systems, and surveillance mounting points into the structural design.

5. Case Studies

5.1 China Tower’s “Digital Tower” Transformation

China Tower’s nationwide “digital tower” initiative demonstrates the scale and effectiveness of integrated security and surveillance at unattended sites.

Scope: Over 1,000 communication towers in Huanggang alone have been digitally transformed, deploying 1,200+ mid-high point cameras, 800+ intelligent cloud broadcast systems, and 12 radar and AIS base stations.

Architecture: The system uses the tower’s existing “tower-room-power-maintenance-network” resources as the foundation, integrating high-point surveillance, drone flight, AI algorithms, and edge computing into an “air-space-ground” integrated perception network.

Operational model: “High-point video sees the whole picture, low-altitude flight inspects details, ground disposal closes the loop” —a layered approach that combines persistent elevated surveillance with targeted drone inspection and ground response.

Relevance to radar sites: This model is directly applicable to unattended radar tower sites. The tower provides the elevated vantage point; the cameras and radar provide detection; AI provides verification; and the communications network enables remote monitoring from a central operations center.

5.2 Qingdao Altai Tower: Security-Integrated Radar Tower Design

Qingdao Altai Tower Co., Ltd. is a professional manufacturer of telecommunication towers, power towers, and tower accessories, established in 2003. The company specializes in the design, manufacturing, and installation of steel towers, with products exported to more than 100 countries and regions. Its multi-function guard towers and radar support structures are engineered to accommodate integrated physical security provisions from the outset—an approach that reduces retrofit costs and ensures that all security layers function as a unified system.

Security integration capabilities:

• Anti-climb provisions: Tower legs are pre-fitted with mounting points for anti-climb guards at regulatory heights (2.8–3.5m). Ladder systems can be specified with lockable access hatches or designed for complete ladder removal when not in use.

• Equipment mounting and locking: Equipment platforms and brackets are designed to accept coded locking inserts and passive electronic locks, securing tower-mounted radar and communications equipment against tampering.

• Surveillance infrastructure: Radar towers are fabricated with dedicated camera and radar mounting brackets at multiple elevations, pre-routed cable conduits for power and data, and provisions for 48V DC or PoE power circuits.

• Perimeter and site security: Altai’s guard tower platforms can be configured with access control systems, door contacts, and tamper sensors, allowing remote monitoring from a central station.

• Remote monitoring compatibility: The towers are designed for seamless integration with third-party radar perimeter detection, PTZ camera systems, and VMS platforms.

Quality and compliance:

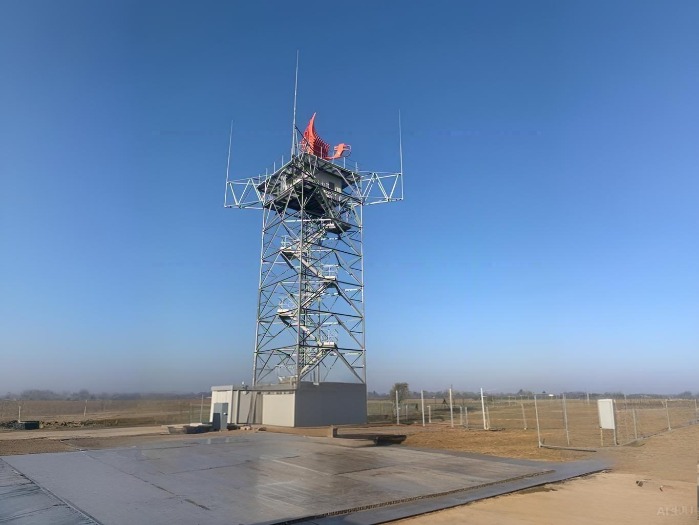

Application example: For a remote radar site in a mountainous region, Altai Tower supplied a 30-meter lattice radar tower with integrated anti-climb guards at the base, coded locking bolts on all equipment mounts, and pre-installed camera brackets at 15m and 25m elevations. The tower was galvanized to ASTM A123 and delivered with a documentation package including material certificates, welding inspection reports, and galvanizing thickness measurements. The customer integrated the tower with a radar perimeter detection system and PTZ cameras, enabling full remote monitoring from a central operations center 200 km away.
